Ultrapak crispak PP Child-resistant foil is a specially developed, non toxic heat seal lacquer coated Aluminium foil for pharmaceutical packaging application. It is Peel and Push type lid foil and compatible to sealing with PVC/PVDC.

Applications

Suitable for child resistant & senior friendly packaging

Salient Features

◉ Compatible to sealing with PVC used for pharmaceutical packaging application.
◉ Excellent print adherance.
◉ Available in both plain and printed form.
◉ Excellent heat resistance.
◉ Excellent machineability
◉ Lowest solvent retention.
◉ Non-Toxic

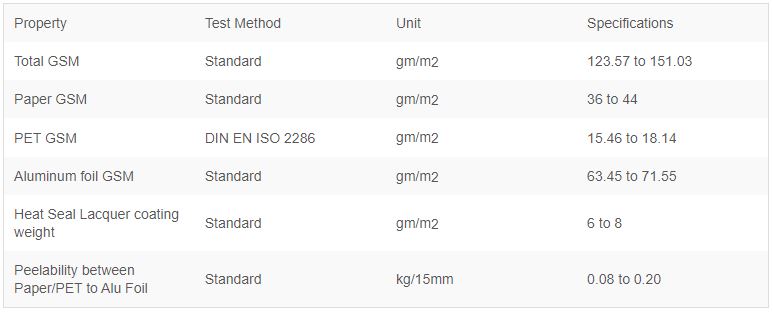

Technical Data Sheet

Crispak PP Variants

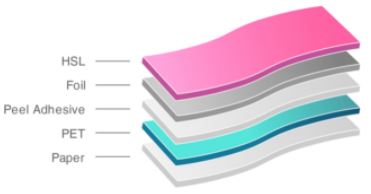

Paper / PET / Peel Adhesive / Foil / HSL

40 / 12 / 25 / 7
◉ Customized products and colours can be developed to suit the specific cases.

Innovation Possibilities

Printing

Additional Information

Printed

Parameter

Test Method

Unit

Specification

Toxicity Test
Current Usp
Unit
Non Toxic
Rub ProofNess Test(20 Rubs at 2 Psi)
In House
Unit
Should Pass
Average No. Of Joints Per Roll/Spools
In House
Number
2 max

Non Printed

Parameter

Test Method

Unit

Specification

Toxicity Test
Current Usp
Unit
Non Toxic
Average No. Of Joints Per Roll/Spools
In House
Number
2 max

Slitted

Inner Diameter of Core

76mm/152mm

Slit Width tolerance
Upper limit +1 and lower Limit -1mm
Slit Roll Width
50mm to 1190mm
Packing
Each Slitted Spool Wrapped in Black PE film
Labelling
Bar Coded labels containing the product details are fixed inside the core, on stretched wrapped film and finally on the carton .Other label indicating the coated surface is also affixed on the spool

Quality & Regulatory

✓ Ultrapak Films & Foils comply with global applicable regulatory standards
✓ Current valid EU Pharmacopoeia,
✓ USP 661.1 FDA 21 CFR EC 1935/2004, (EU) No. 10/2011
✓ REACH – Regulation (EC) No. 1907/2006
✓ USDMF & Canadian DMF details upon request
✓ USDMF and Canadian DMF nos. unique for each product

Ultrapak Advantages

✓ Two Pharma Packaging Materials Plants
✓ 50,000 tons annual capacity
✓ A company of over 1000 professionals
✓ State FDA licensed facility
✓ ISO Class 8 (Class 100000) clean room facilities
✓ World class SOPs in line with USFDA requirements
✓ Customized inventory management through 21 CFR Part 11 complaint SAP ECC 6.0
